Proflow Transmission Cooler Kit, Dual Core, 15.75'' x 11.5'' x 5.0'', 10'' 650CFM Fan, AN6 Inlets

Proflow’s Ultra Cool dual core transmission oil cooler kit will help to increase your vehicle’s transmission life expectancy by significantly lowering operating temperatures. It has a large 38 mm thick powder coated dual core with an integrated mounting bracket and AN6 male connections. It also comes complete with a 650 CFM 10” curved-blade electric fan already mounted, so all you have to do is find a spot to mount it on your car! This kit also includes rubber hose, mounting accessories and a 74°C relay switch for activating the fan.

Features:

16 pass tube & fin core

650 CFM reversible electric fan (5.3 Amp current draw)

Anodised aluminium shroud/bracket

Can be mounted vertically or horizontally

250 PSI working pressure

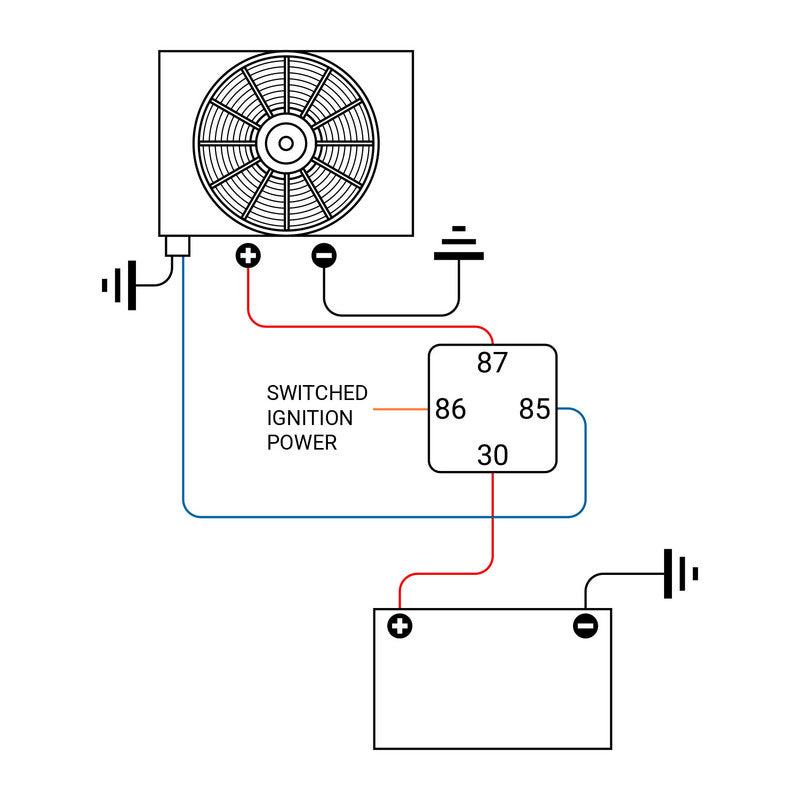

Includes 74°C in-line thermostat for fan activation

Specifications:

Inlet size: -06AN

Fan size: 10"

CFM: 650

Amp draw: 5.3 A

Width: 15-3/4"

Height: 11-1/2"

Depth: 5"

Mounting: 14-3/4" x 5-1/4"

Hose size: 3/8"

Hose length: 10'
